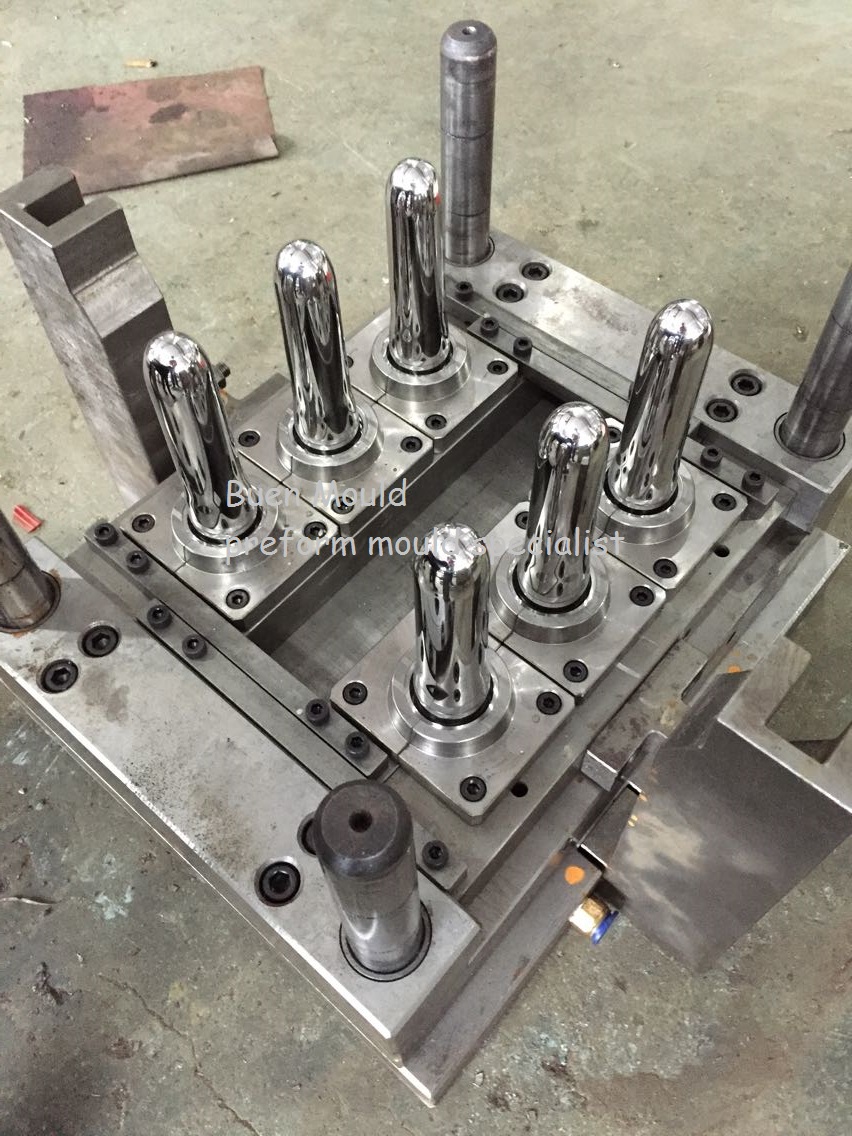

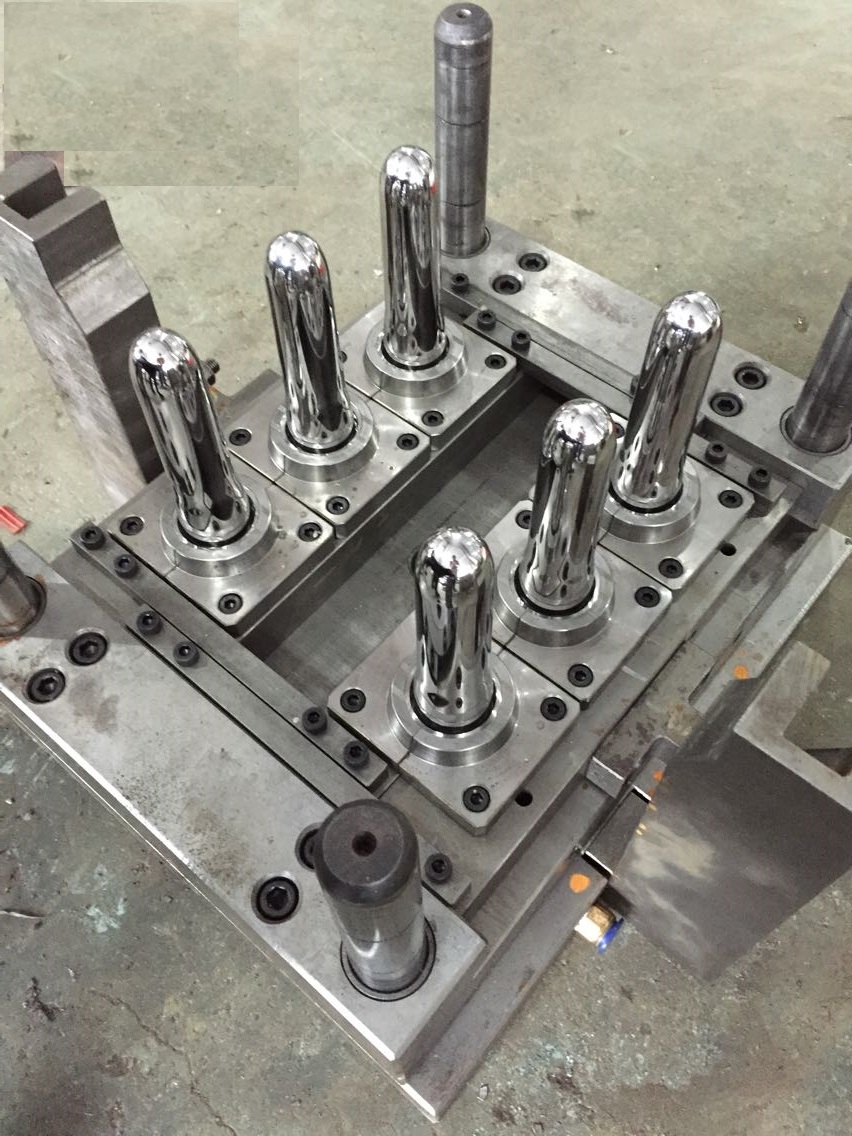

PP Milk Bottle Preform Mould
Name: PP milk bottle preform mould
Cav. no.: 6 cav.
Plastic: PP
Steel Material: S136 (core/cavity/slider)
Product weight: customized
Neck size: customized
Injection gate: valve gate
Description
Advantages:
- Core/cavity/slider steel: stainless steel S136 (HRC50);
- Standard core/cavity designing to ensure interchangeability;
- Internationally standard neck screw design and imported neck screw tooling material;
- Bi-direction pneumatic valve design;
- Eccentric adjuster （multi-levels double taper positioning technology ( independent locking) to guarantee the mould eccentricity);
- Injection gate type: long gate,short gate and valve gate;
- computer simulated tensile test design to realize the maximum qualified product;
- High quality mirror polished anti-corrosion material for valve gate mould to prolong mould life;
- Advanced hot runner system: independent temperature controlling ensures well-distributed heating and out looking of preform product;
- Optimal cooling system design realize fully-automatic production;
- Runner-free design save the labour work on runner cutting.
- Buen mould takes computer simulated tensile test design to realize the maximum qualified product, as well as multi-levels double taper positioning technology ( independent locking) to guarantee the mould eccentricity (tolerance is within in 0.05-0.06mm). Besides, we use Sweden stainless steel S136 for mould core and cavity material, of which the steel hardness can reach to HRC45-50. All screw necks of bottle are in accordance with international standard. The steel material of screw neck is mostly imported steel, of which the hardness can reach to HRC60. In addition, we also improved hot runner system as the performance of mould itself to reduce some labour cost such as runner cutting.
