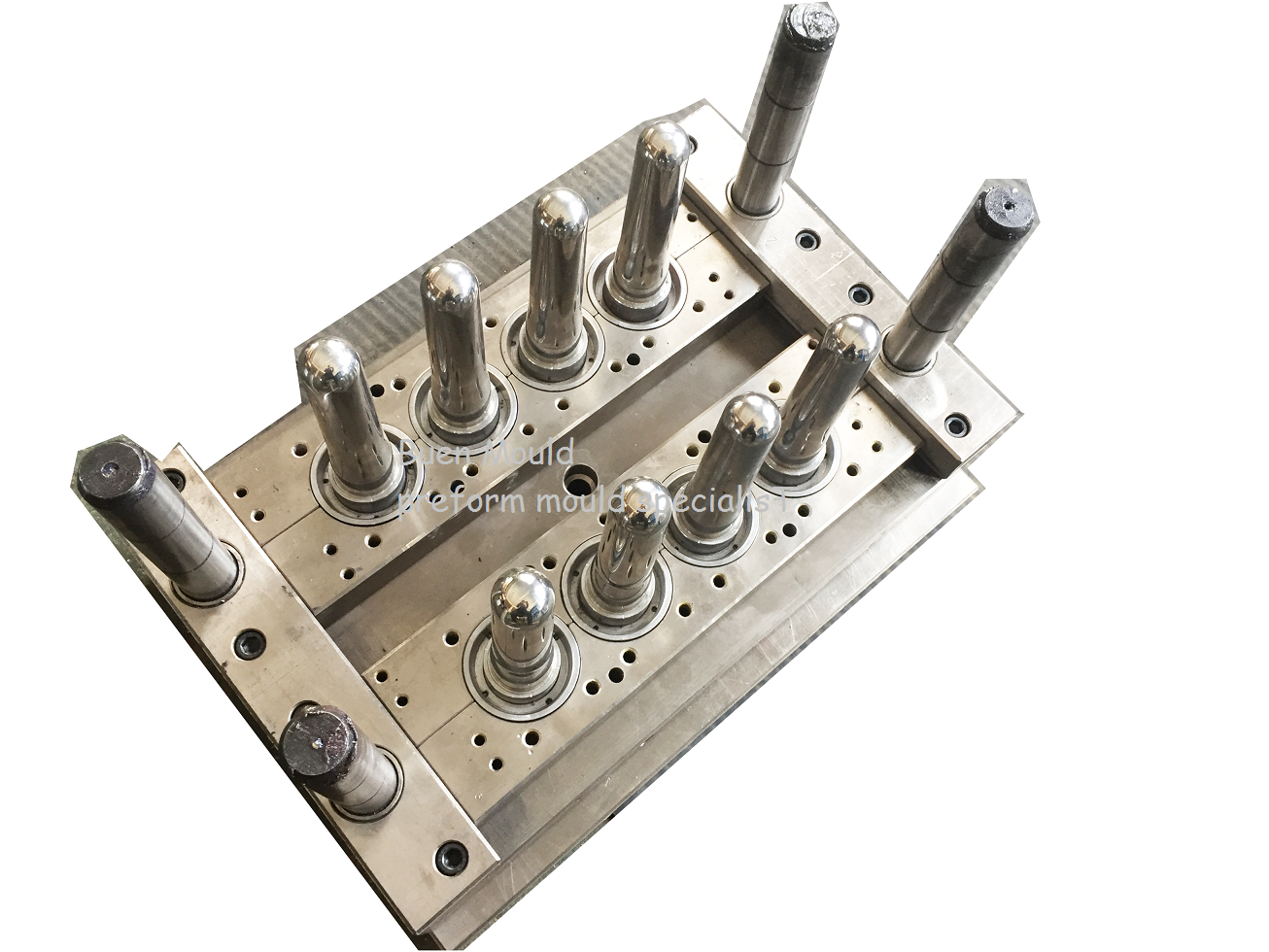

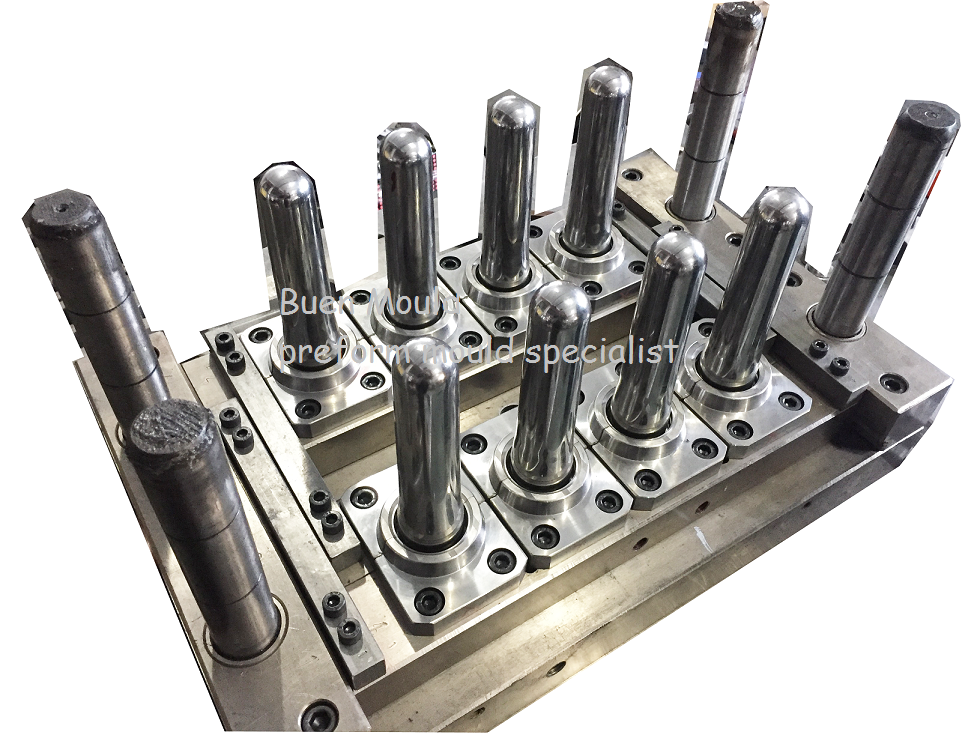

Oil Bottle Preform Mould
Name: oil bottle preform mould
Cav. no.: 8 cav.
Steel Material: S136 (core/cavity/slider)

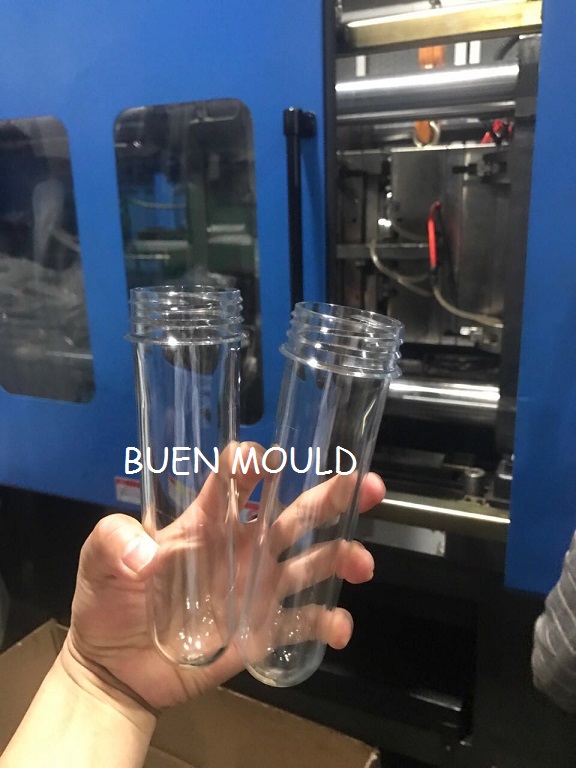

Product weight: 500ml(20-30g)/3L(50-70g)/5L(90-120g)
Neck size: 32mm/46mm
Injection gate: short gate/valve gate
Description
Advantages:

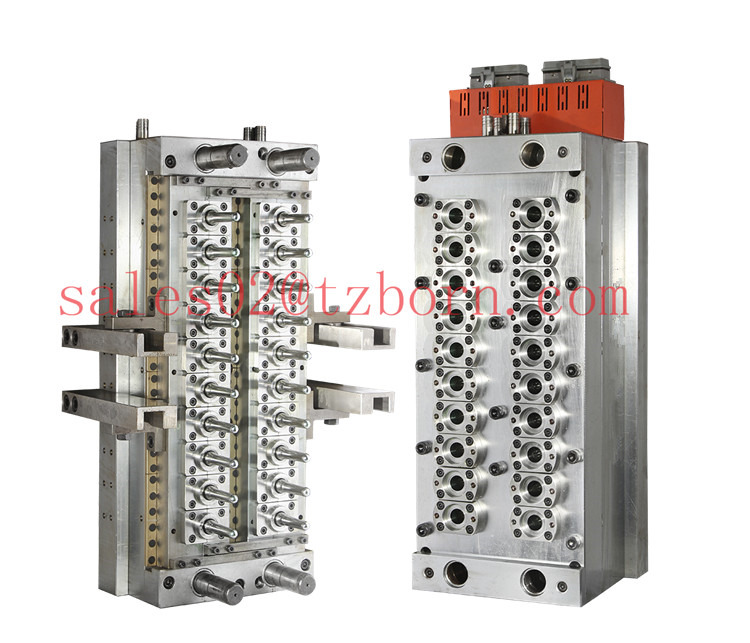

- Cavity number can reach to 96 cav. at maximum;
- Core/cavity/slider steel: stainless steel S136 (HRC50);

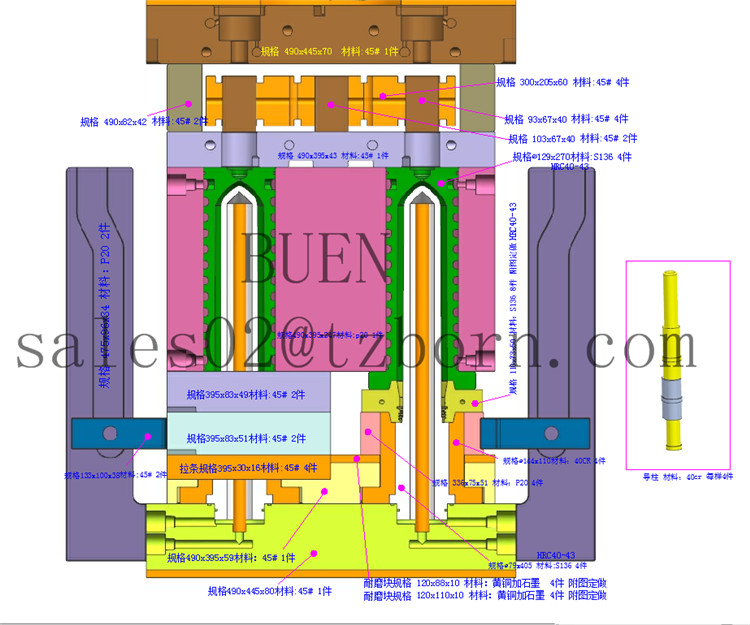

- Standard core/cavity designing to ensure interchangeability;
- Internationally standard neck screw design and imported neck screw tooling material;
- Bi-direction pneumatic valve design;
- Eccentric adjuster （multi-levels double taper positioning technology ( independent locking) to guarantee the mould eccentricity）；
- Injection gate type: long gate,short gate and valve gate;
- computer simulated tensile test design to realize the maximum qualified product;
- High quality mirror polished anti-corrosion material for valve gate mould to prolong mould life;
- Advanced hot runner system: independent temperature controlling ensures well-distributed heating and out looking of preform product;
- Optimal cooling system design realize fully-automatic prodution;
- Runner-free design save the labour work for runner cutting.
