Fully-Auto Bottle Blowing Machine

Home Bottle Blowing Machine Fully-Auto Bottle Blowing Machine

Fully-Auto Bottle Blowing Machine

Bottle Blowing Machine, Fully-auto Bottle Blowing Machine, Featured Products2018-04-11t801

Description

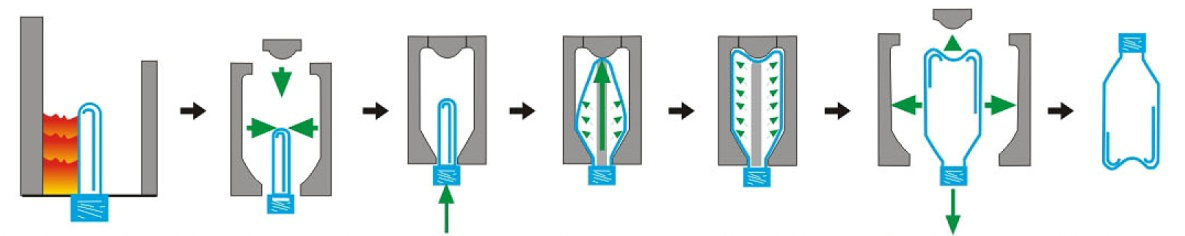

1. Work Flow of Buen Fully-auto Bottle Blowing Machine (2 cavity for example):

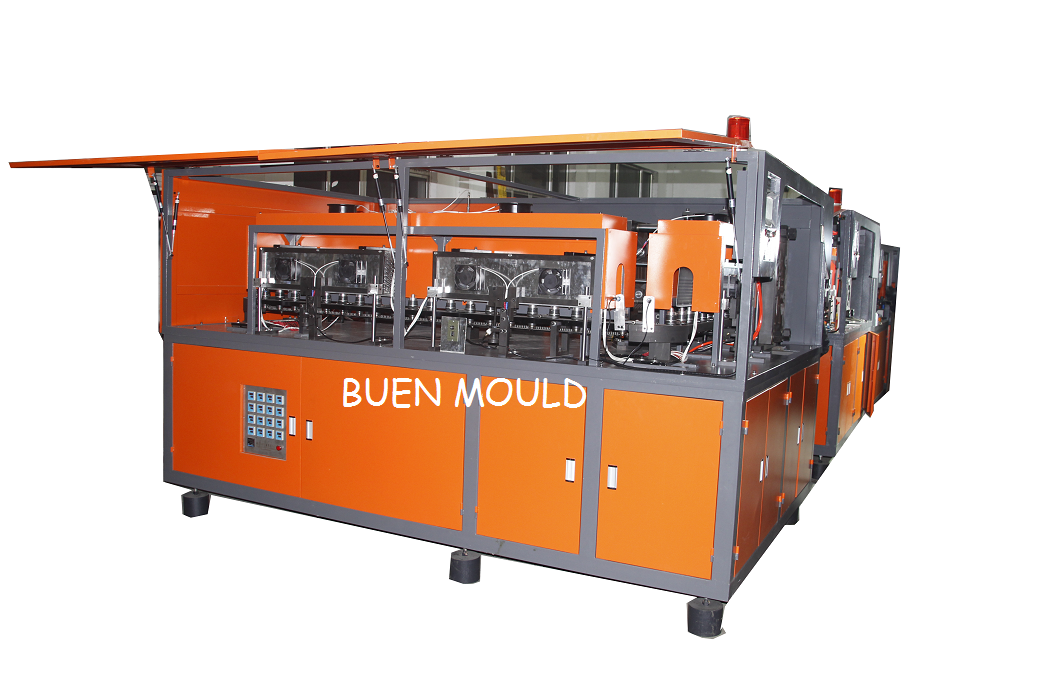

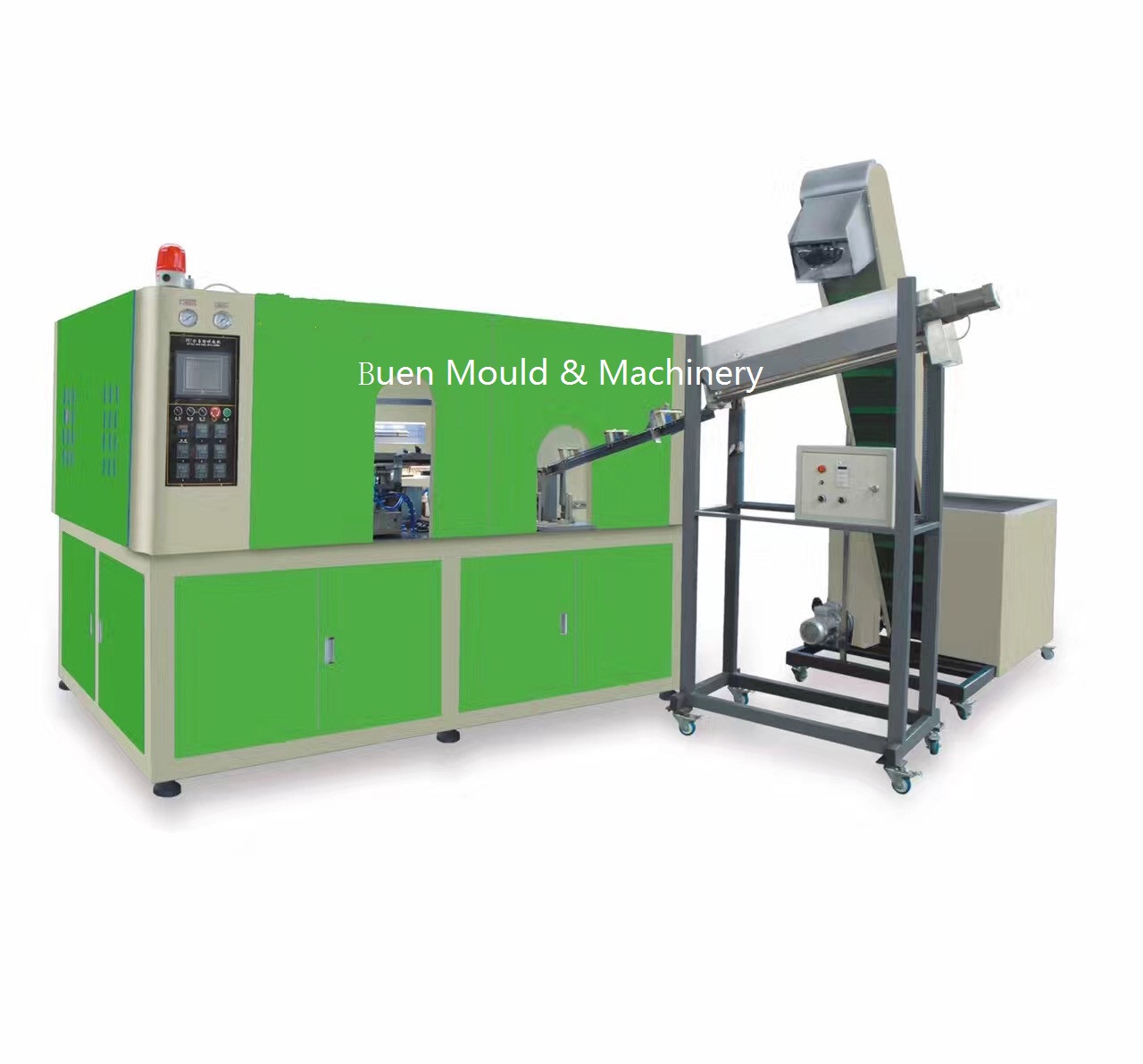

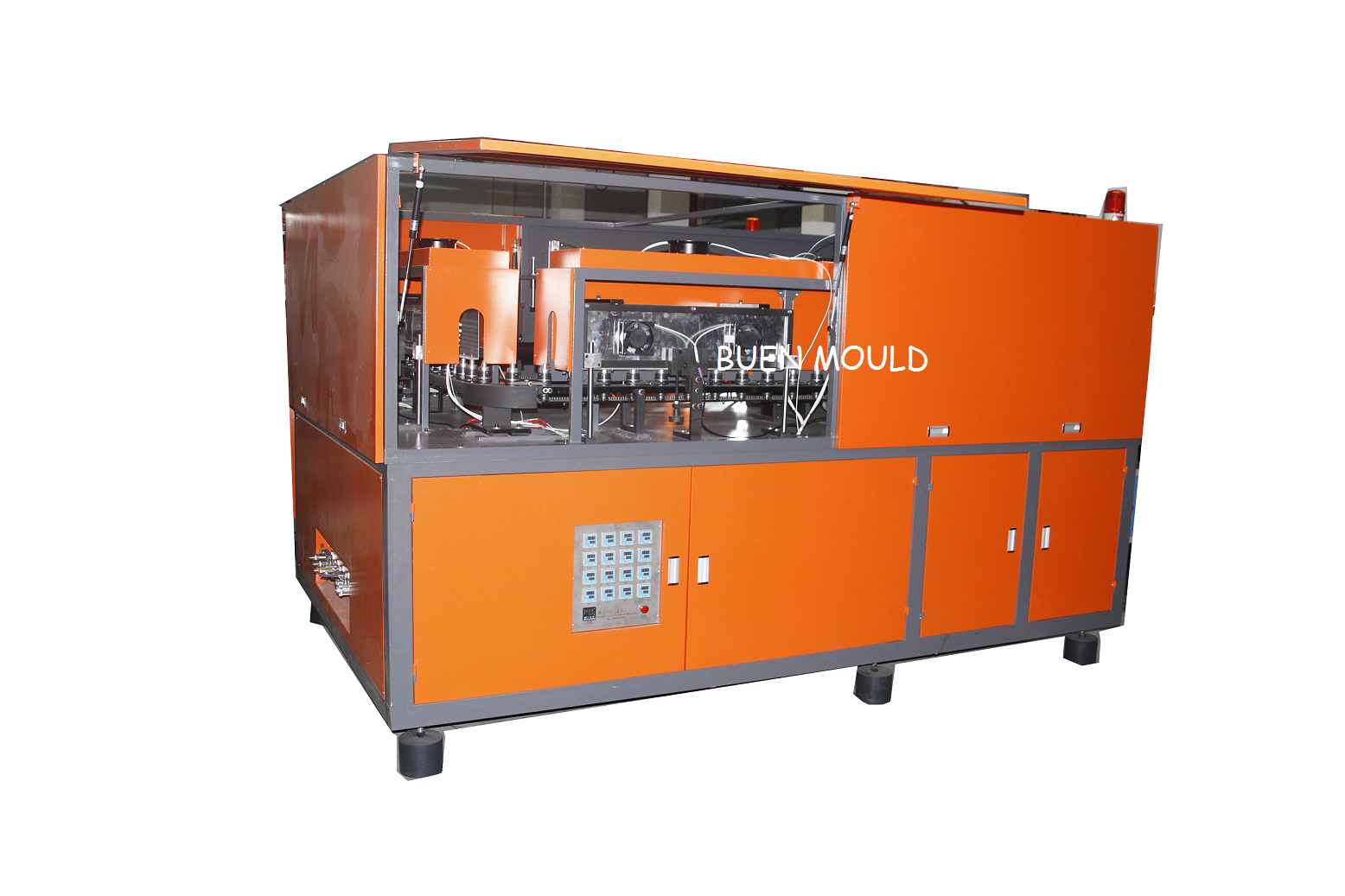

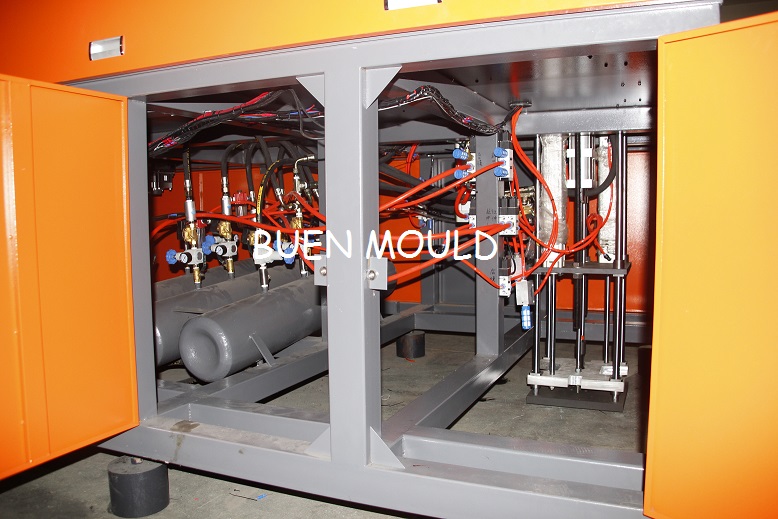

2. Product Show



3. Machine Parameters

TYPE ITEM UNIT YC-A2
CONTAINER Theoretical output Pcs/Hr 3500-3800
Max.container volume L 2L
Max.neck diameter MM 38
Max.container diameter MM 105
Max.container height MM 350
Number of cavity Cavity 4
ELECTRICAL

SYSTEM

Actual power consumption KW 18-20
Heating power KW 25
Actual total power KW 27
AIR SYSTEM Operataiting low pressure Mpa 0.8
Low pressure consumption





M3/min



0.8-1.0
Blowing pressure Mpa 2.0-3.0
High pressure consumption   M3/min



1.0-1.5
CHILLER

WATER

Operating pressure Mpa 0.3-0.5
MACHINE Machine dimension M 3.5×1.7×2.1
Machine weight Kg 2200
 On the feeder dimension 2.2*1.1*2.5
weight 250kg

4. Configurations of machine

Photo Name Brand Region
Clamping cylinder

Turn the cylinder

Stretching cylinder

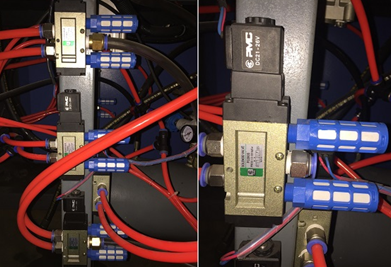

Airtack Taiwan
Blow air valve Parker America
Operating valve Parker America
Electrical appliances CHNT Zhejiang
Manipulator JingQI Taiwan



5. Auxiliaries

Auxiliary equipment
1 High air pressure compressor 2.4/3.0 2.4m3/3.0Mpa 1set —
2 Low air pressure compressor 1.6/1.2 1.6 m3/1.2Mpa 1set —
3 High pressure air cooling dryer 2.0/3.0 2.0m3/3.0Mpa 1set —
4 water chiller WC 03 3HP 1set —
5 High air pressure filters 2.0/3.0 2.0m3/3.0Mpa 2sets —
6 Low air pressure filters 2.0/1.2 2.0m3/1.0 Mpa 1set —
7 High air tank 1.0/3.0 1.0M3/3.0Mpa 1set —
8 High pressure tracheal           3.0Mpa 20M —

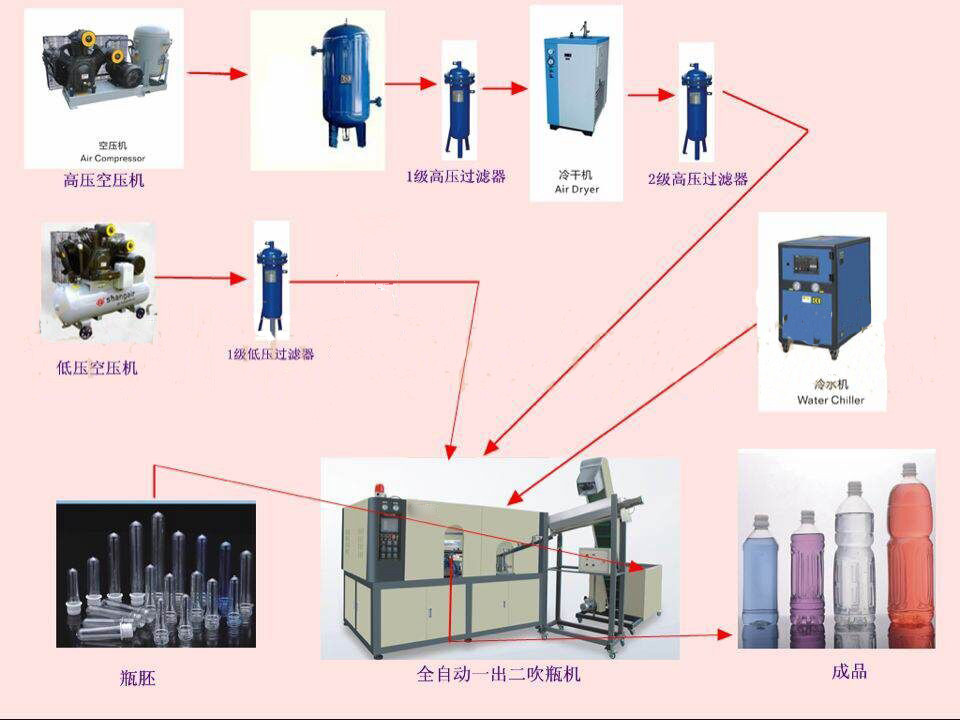

6.Auxiliary Equipment series

1.High pressure air compressor and low pressure air compressor

 High pressure air compressor is responsible for supplying high pressure air to bottles to make sure the brightness and perfect edges.

 Low pressure air compressor is responsible for supplying low pressure air to bottle blowing machine for operateing



Model Air delivery Discharge pressure Motor power Speed External
Dimensions
Weight
M3/min MPa KW HP r.p.m MM KG
2.4/30 2.4 3.0 30 40 730 2000X1750X1450 1200
1.6/12 1.6 1.2 11 15 600 1750X720X1300 410



2.High pressure air cooling dryer

Air cooling dryer is devoted to make the high air pressure that  from compresor dry and clean ,they help filtrate the impurities and dissolve grease、oil、and dirt so that to make sure the air is good enough to blow bottles.

technical data 10NF
Nm3/min 2.0
Inlet pressure 3.0Mpa
Compressor power (KW) 0.59
voltage 1Ø 220V 50Hz
Fan power (W) 60
Pipe diameter ZG1”
Dimension (L*w*H) mm 520*360*750
Weight (kg) 50

3、water chiller

   Water chiller’s functions is to make bottle mold cold order to protect mold and bottles , And to fast chill bottle shape.

Model Chilling capacity power Chilled water pump power Max. flow rate of chilled water Tank capacity External Dimensions Weight
KCal/Hr KW HP KW L/min L MM KG
WC03 7,740 2.25 3 0.37 90 45 850x520x900 100

4、Air filter(low pressure and high pressure)

Model Nm3/min Height Diameter Weight Outlet
FS- 30(2.0/12.5)

Low pressure

2.0 620 280 21



Rp1/2’’



Kl-2NG(2.0/30-40)

High pressure

2.6 820 300 20 Rp1”

5、High air tank

Air tank is mainly to store abundant air to supply to bottles through air pipes, in other hand it can also protect the compressor from keeping working

Model Height Diameter Weight The outlet Sewage exit
1.0/30 2200 800 469 Rp1½” R3/4”

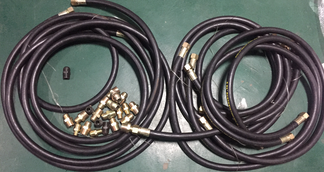

7、High pressure tracheal

7. Free spare part lists

No Name Qty        Note
1 Adjust voltage 1Pcs



2 The heating tubes  10 Pcs
3 Sealing ring 2Pcs



4 Sealing gasket 6Pcs
5 Proximity switch 1Pcs
6  PET preform holder 2pcs
7 The heating module 2pcs
8 Electricity valve 1Pcs
9 Silencing valve 2Pcs
10 Start Switch 2Pcs
