Description

BUEN series fully automatic blow molding machine ,It can blow bottle as below

Carbonated mineral pesticide cosmetics ,wide- mouth ,hot filling and other packing containers ,which is  made of plastic of crystalline type ,such as PET and PP etc

Machine Features:

1.High Speed: 2000BPH(2-cavity), 4000BPH(4-cavity), 6000BPH(6-cavity), 8000BPH(8-cavity);

The detailed data can be sent by email. Our company will provide you with quotation service

2.High Stability: Stable performance with advanced PLC;

3.High Efficiency: Under the environment of sharp penetrability and swift distribution, the preform  will be rotated by itself

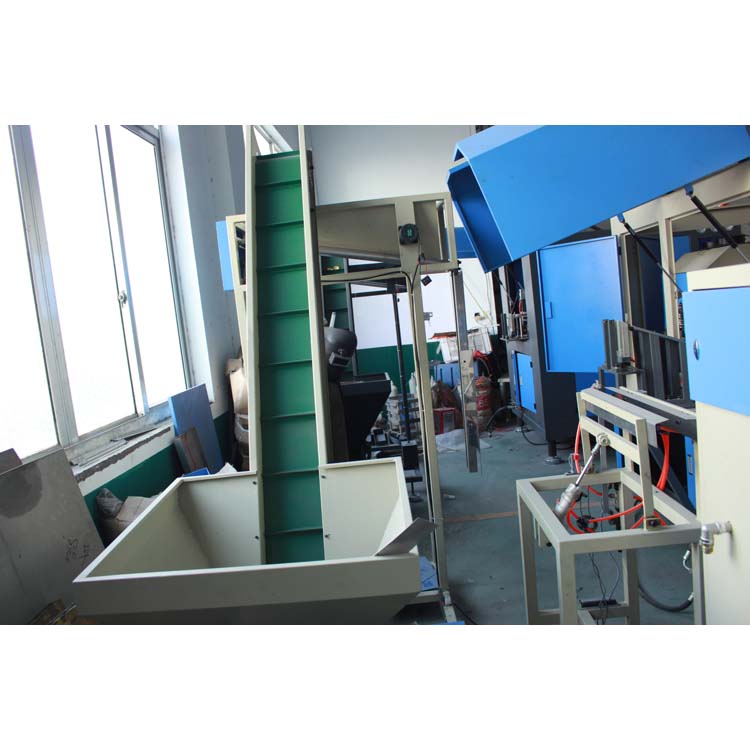

4.High-level Automation: Preforms will be carried automatically by automatic conveyor.
5.High Adjust ability: When preheat various preforms, just need to adjust the light tube and the length of the reflecting

board on preheating area.

6.High Security: The automatic locking apparatus in each mechanical action, which will make all the procedures turn into

a state of safety;

7.Good Innovation ability:

1),Cooperation with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine;

2),Unique design of the position of valve to make the air pressure diagram of the machine would be easier to understand;
3),Strong clamping force with high pressure and double crank links to lock the mold tightly;
4),Ideal effect of the chilling with the chilling system;
B.8.Environmental-friendly: No contamination and low noise with the air cylinder to drive the action instead of the oil pump;

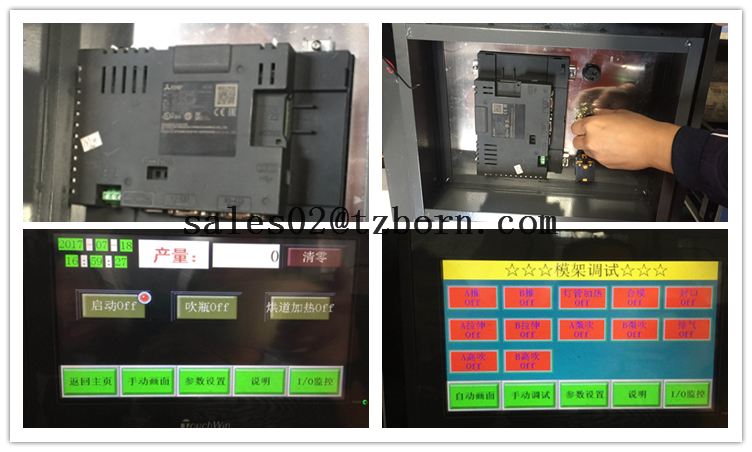

Control system
Adopt  word famous  brand PLC to control the machine. Easy to operate.

Air cylinder and bottle blowing mold

1. Each cylinder controlled independently. Stable and reduce the failure rate.
2. The mold adopt #45 steel/p20,chrome plating    on the surface,avoid rust.

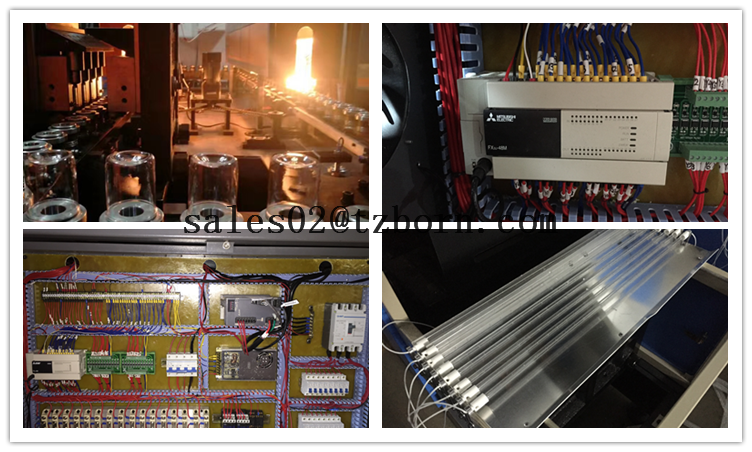

Energy saving infrared lamp

1. 1. Each layer of lamp controlled independently,suitable for different kinds of preform.
2. 2. Power of each lamp: 1.0Kw
3. 3. Length of each lamp: 850mm
4. The heater equippedwith a temperature control system. Make the machine suitable for long time work.

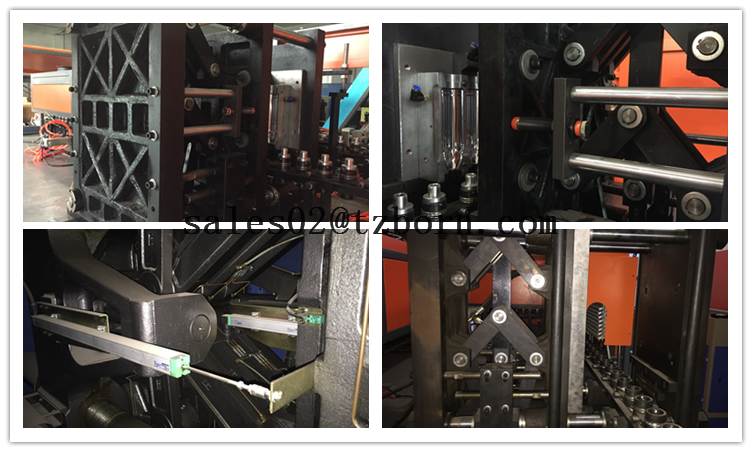

Strong clamping system,suitable for making bottle from 0.1L to 6L.

1. The temperature control system,each layer of lamp controlledindependently.
   2. The speed of preform move and self rotation can be controlledindependently.

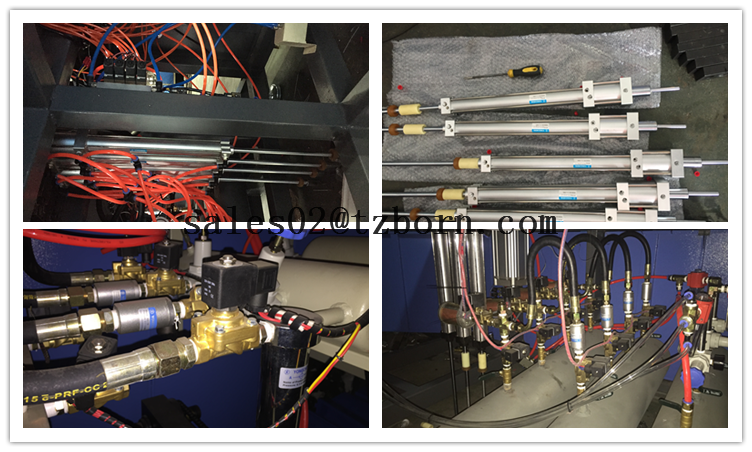

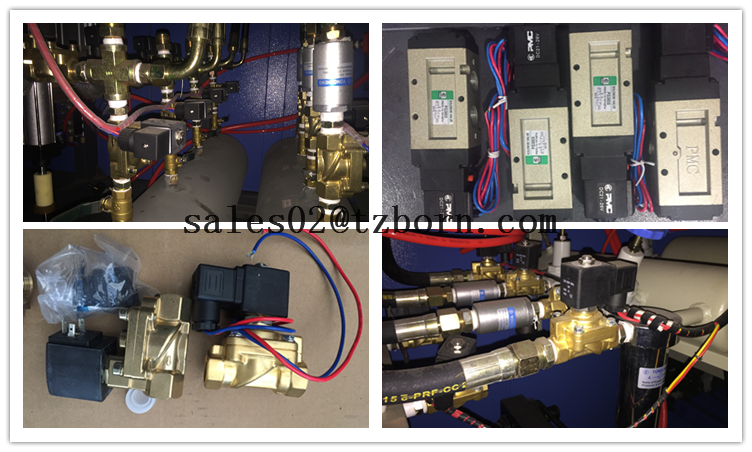

Operating and blow air valve

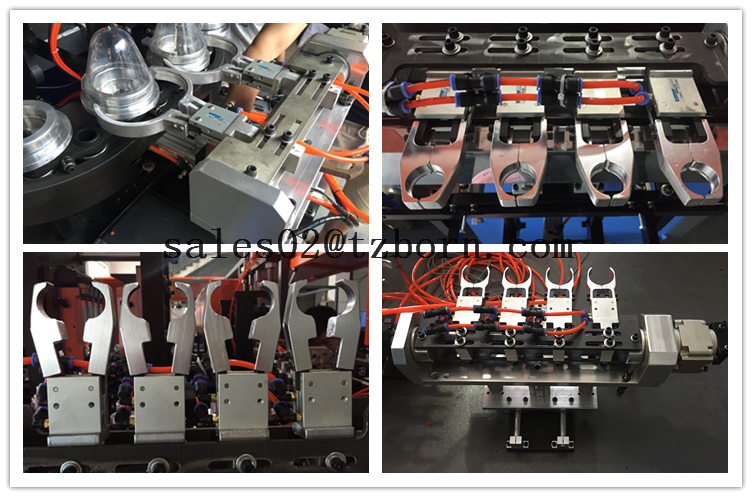

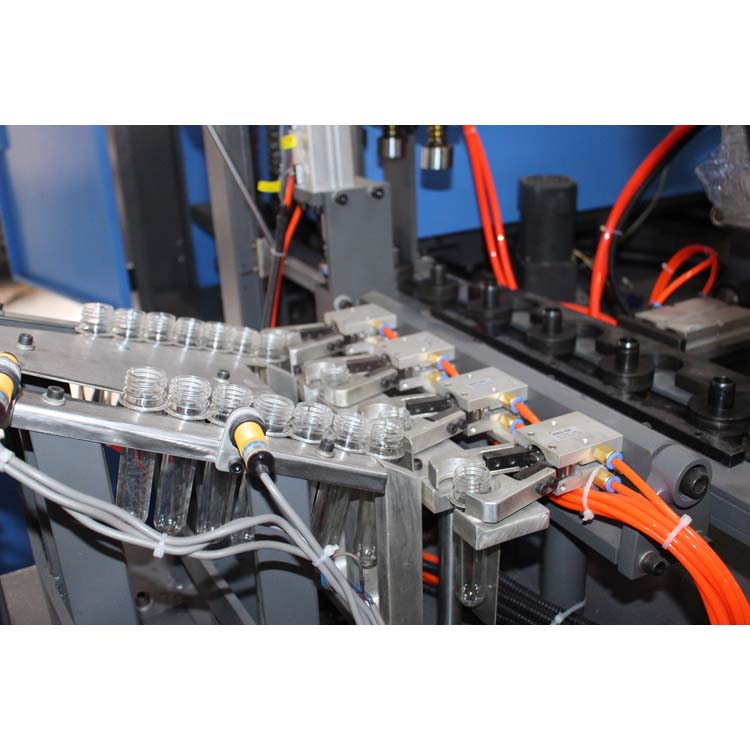

Manipulator hand

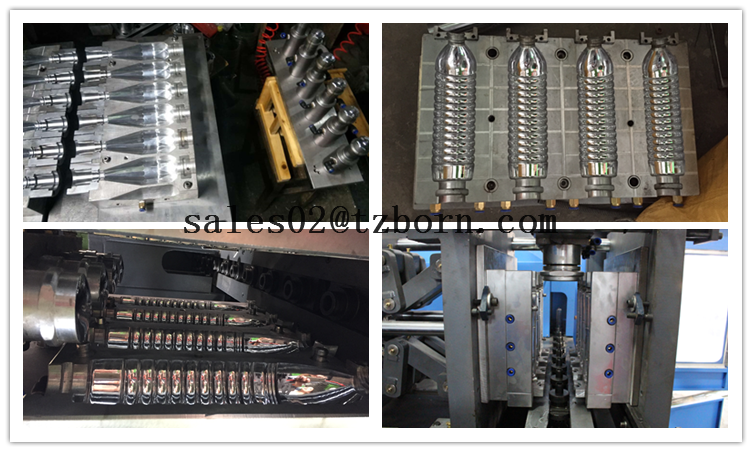

Bottle blowing mold

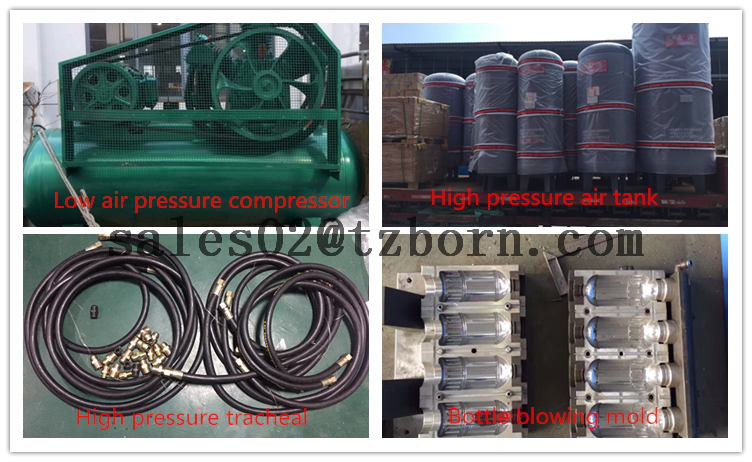

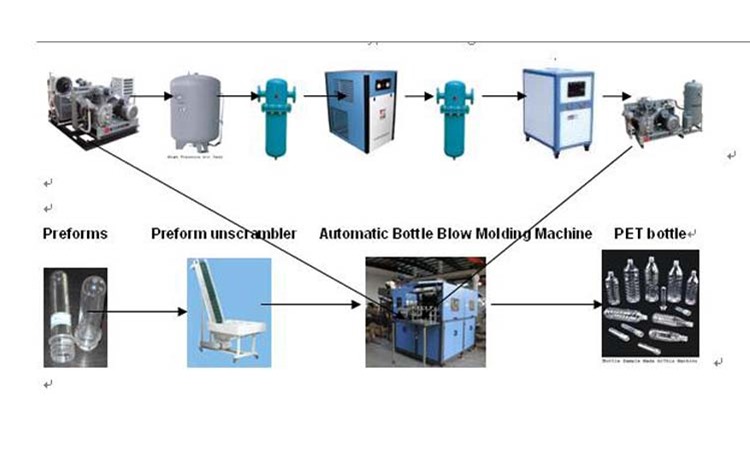

Auxiliary equipment

1、Air compressor is responsible for supplying high pressure air to bottles to make sure the brightness and perfect edges.

2、Air tank is mainly to store abundant air to supply to bottles through air pipes, in other hand it can also protect the compressor from keeping working.

3、Air dryer group (air dryer and filters) is devoted to make the high air that from compressor dry and clean. They help filtrate the impurities and dissolve grease,oil and dirt so that to make sure the air is good enough to blow bottles.

4、Water chiller’s functions are:

1^st, to make bottle mold cold in order to protect mold and bottles.

2^nd, to fast chill bottle shape.

Our services

. Seller will send buyer tooling process report each week.

. Seller shall provide buyer all the technical documents relating to the product.
. Seller shall send buyer free sample of edible oil preforms for 2 times for product checking.

. Seller shall provide buyer the mould test video to see mould runningt status.
. Buyer shall support seller in sample and mould checking and give positive reply in technical problems.
. Guarantee time: 2 year.
. Payment terms: 40% prepayment, balance shall be paid before shipment.
. Delivery: 50 days upon design confirmation.
After guarantee time, in case any NON-HUMAN damage, seller shall bear the cost for cost.
. Seller shall provide buyer with relative technical assistance of 500ml 1L 5L 4 cavity edible oil bottle preform mold
Packaging &Shipping

Outside: Standard waterproof wooden box; Inside: film paper + packing belt reinforced
To make sure the product packaging integrity and safety;
Shipping methods:
1. By sea; 2. By air
(recommend big product such as blowing machine and preform molds)
3. By express: TNT, EMS, DHL, Fed Ex, UPS etc.(suitable for free samples)

FAQ

1.Q:Are you a factory or trading company?

A:We are factory

2.Q:Where is your factory located?

A:Our factory located in Huangyan-Town of Mold in china,Near Shanghai and Ningbo port,3 hours by train from Shanghai,2 hours by air from Guangzhou

3.Q:How can I get some samples?

A: We are honored to offer you free samples.But you will pay express charge.after place an order will refund double charge.

4.Q:What is your main product?

A:Our factory focus on Full-automatic bottle machine ,semi-automatic bottle machine preform mould,cap mould,pharmacist mold and blow mold,simultaneously we working with the domestic famous injection machine,help you to solve all sorts of problem.

5.Q: what is your terms of payment ?
A: 50% advance payment against contract, the balance should be paid before shipment
6.Q:How about quality control in your factory?
A:Quality is our culture.we pay great attention to quality control from beginning to the end.Every piece of goods is tested strictly before packing and delivery
7.Q:How about guarantee for machine and molds?
A:For machine offer one year guarantee.For molds we offer one year or 1million shot guarantee.based on which comes first
8.Q:ls there complete machine include mold and other accessories?
A:Yes,what we are provide is the complete system and you will no need spend a lot to find  thesuitable accessories machines

9.Q:What is the language of PLC and touch panel?

A:Don’t worry ,we will translate the language in English,make sure you will have a easy operation

10.Can you help us with the shipment of this machine and molds?

A:Yes,With honor we have our special shipment company which already cooperate for longtime,you can contact us for the freight,we will give you the best price we can.also you can ask you own shipping forwarder,we help you done other things,customer satisfy is our target
